SAMTok: Representing Any Mask with Two Words

Why SAMTok?

Mask as Language

Unifies mask understanding and generation into a single linguistic framework. No need for separate complex decoders or pooling layers.

Extreme Efficiency

Represents any complex mask with just two discrete tokens, significantly reducing inference cost compared to polygon or RLE formats.

RL-Ready

Since masks are discrete tokens, standard Reinforcement Learning (RL) can be directly applied to optimize pixel-wise generation.

Plug-and-Play

Non-intrusive design allows any base MLLM (like QwenVL) to acquire pixel-wise capabilities via simple next-token prediction training.

Workflow

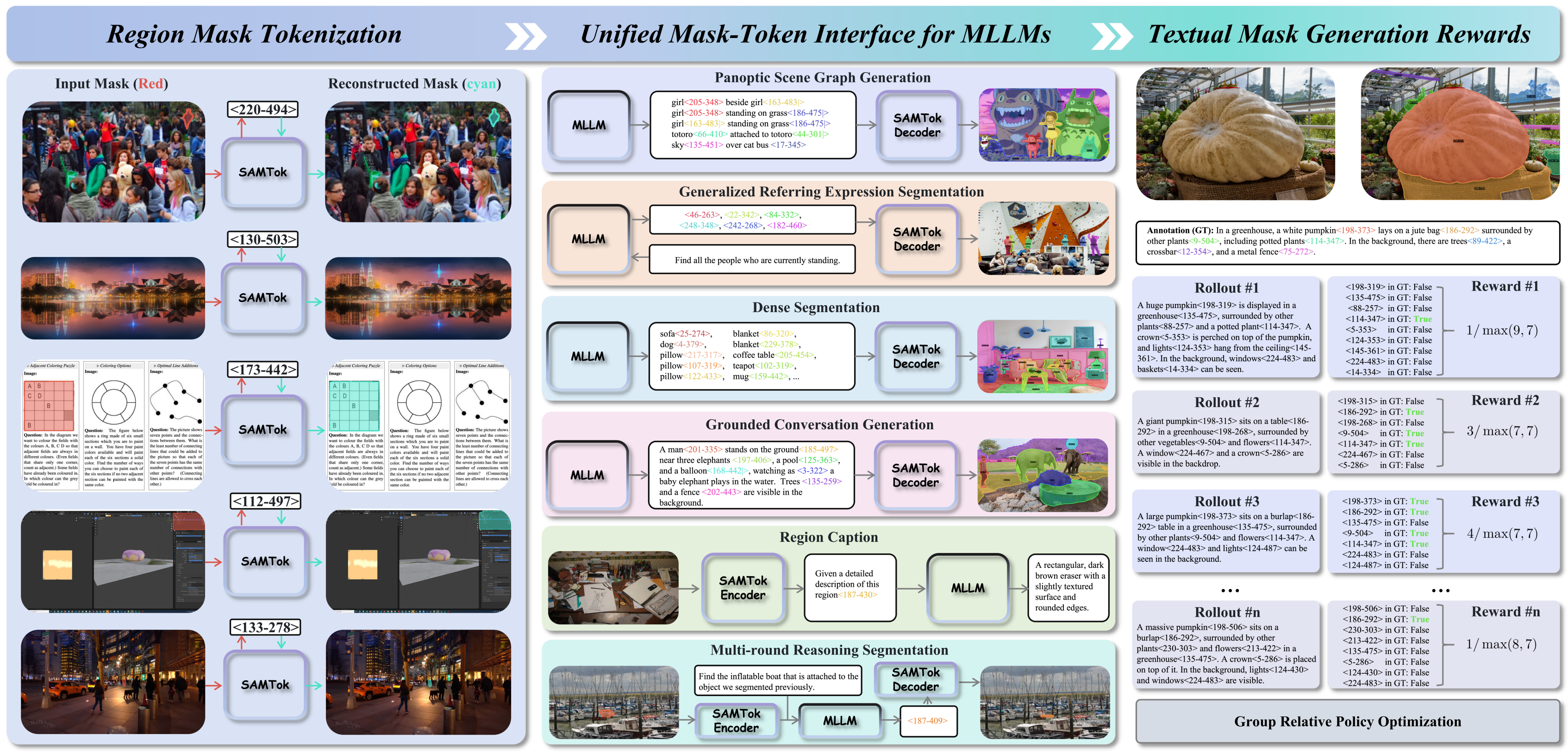

Figure 1

We propose SAMTok, a discrete mask tokenizer that can tokenize masks into textual special words and detokenize the textual special words into masks, which can transform masks into a new language for MLLMs to learn like regular text data. As shown in Figure 1, our proposed SAMTok can convert diverse masks into textual special tokens and accurately reconstruct the corresponding masks. Through SAMTok, any MLLM can acquire powerful pixel-wise capabilities by learning like language data through supervised fine-tuning and reinforcement learning, without any additional architectural modifications or specialized loss design.

SAMTok Architecture

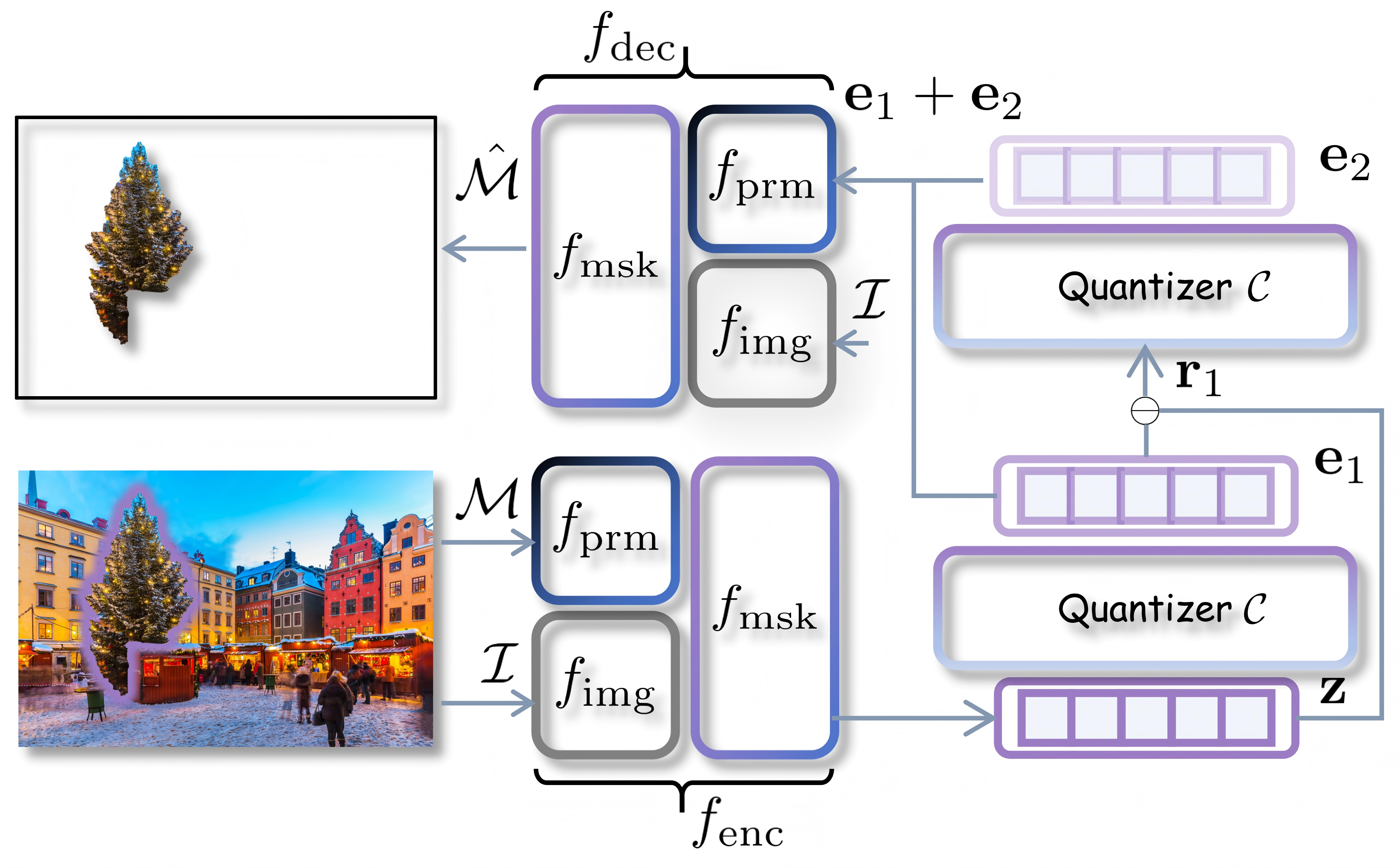

Figure 2

SAMTok has an encoder \(f_{\text{enc}}\), a vector quantizer with codebook \(\mathcal{C}\), and a decoder \(f_{\text{dec}}\). Both \(f_{\text{enc}}\) and \(f_{\text{dec}}\) are instantiated with a SAM model, which includes an image backbone \(f_{\text{img}}\), a prompt encoder \(f_{\text{prm}}\), and a mask decoder \(f_{\text{msk}}\). Given an input image \(\mathcal{I}\) and a region \(\mathcal{M}\) (e.g., the area outlined in purple), the SAMTok encoder \(f_{\text{enc}}\) first encodes the 2D mask into a mask embedding \(\mathbf{z}\), then performs two-stage quantization to obtain discrete mask embeddings \([\mathbf{e}_1, \mathbf{e}_2]\). The SAMTok decoder \(f_{\text{dec}}\) reconstructs the 2D mask \(\hat{\mathcal{M}}\) from the original image and the region's discrete mask embeddings.

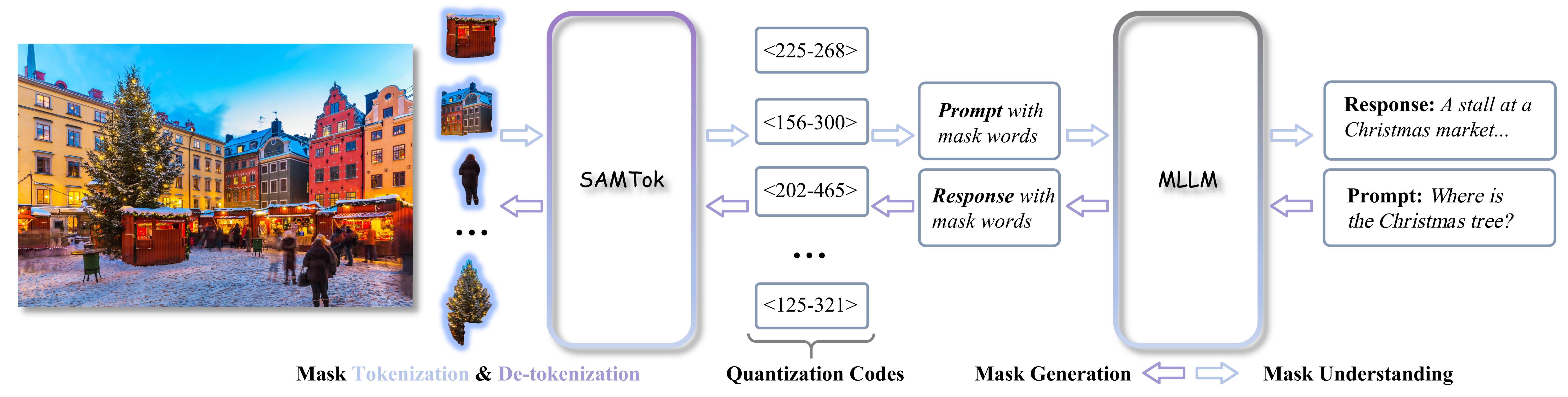

Figure 3

For the mask understanding task, SAMTok first tokenizes region masks into quantization codes, then formats them into mask words, which are used in the MLLM prompt to refer to the corresponding image regions. For the mask generation task, the MLLM first produces mask words according to the instruction, then maps these mask words to quantization codes, after which SAMTok reconstructs the 2D masks.

Visualizations

SFT vs. RL. Examples are sampled from the GRES benchmark. RL finds more target objects, localizes relative positions better, and produces cleaner masks than SFT across diverse scenes.

Region mask reconstruction examples. For each region, the ground-truth mask is tokenized into two discrete codes, and SAMTok reconstructs the mask solely from the original image and the quantized mask tokens. SAMTok preserves fine structures for small, thin, or irregular objects even under challenging lighting or clutter. Since SAMTok is fully decoupled from the MLLM, its reconstruction quality remains stable regardless of downstream model training—unlike joint-training mask tokenizers that tend to collapse to elliptical or blurred masks.

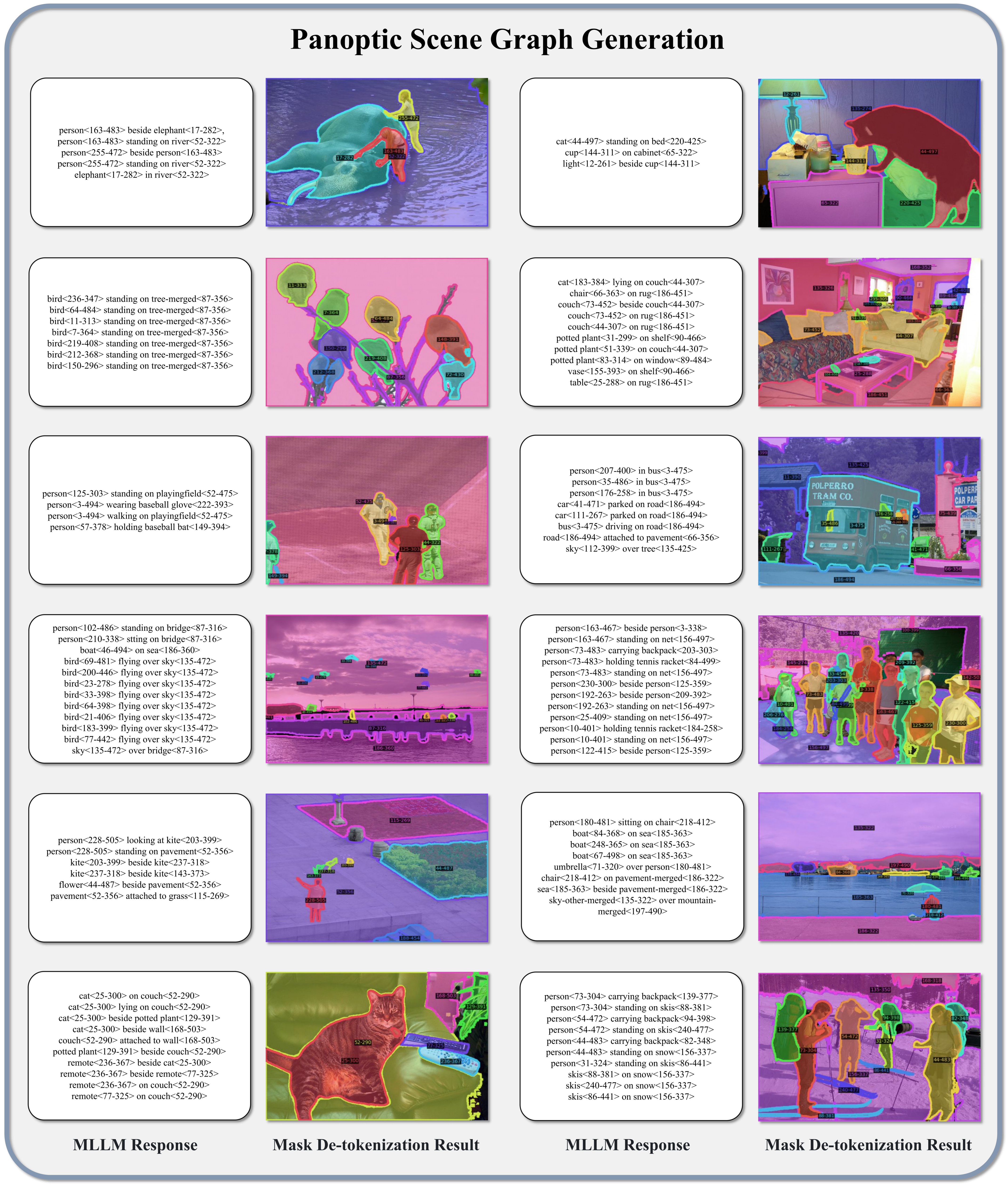

Panoptic scene graph generation(PSG) examples. The model predicts subject–relation–object triplets where both subject and object categories are paired with their corresponding segmentation masks, represented through mask tokens. SAMTok’s interface allows the MLLM to generate consistent object masks and relational descriptions simultaneously, demonstrating strong alignment between textual predicates and pixel-grounded regions.

GRES examples. Given a natural-language referring expression, the MLLM outputs two mask tokens that decode into the final segmentation mask. SAMTok enables precise grounding for expressions involving fine attributes, part-level targets, or contextual reasoning. The examples show robustness to ambiguous descriptions, occlusion, and multi-object scenes.

Region Caption examples. Each visualization shows a region mask input (tokenized as two mask tokens) and the model’s generated description. SAMTok provides unambiguous spatial grounding, enabling the MLLM to generate accurate and context-aware region descriptions about attributes, roles, and interactions.

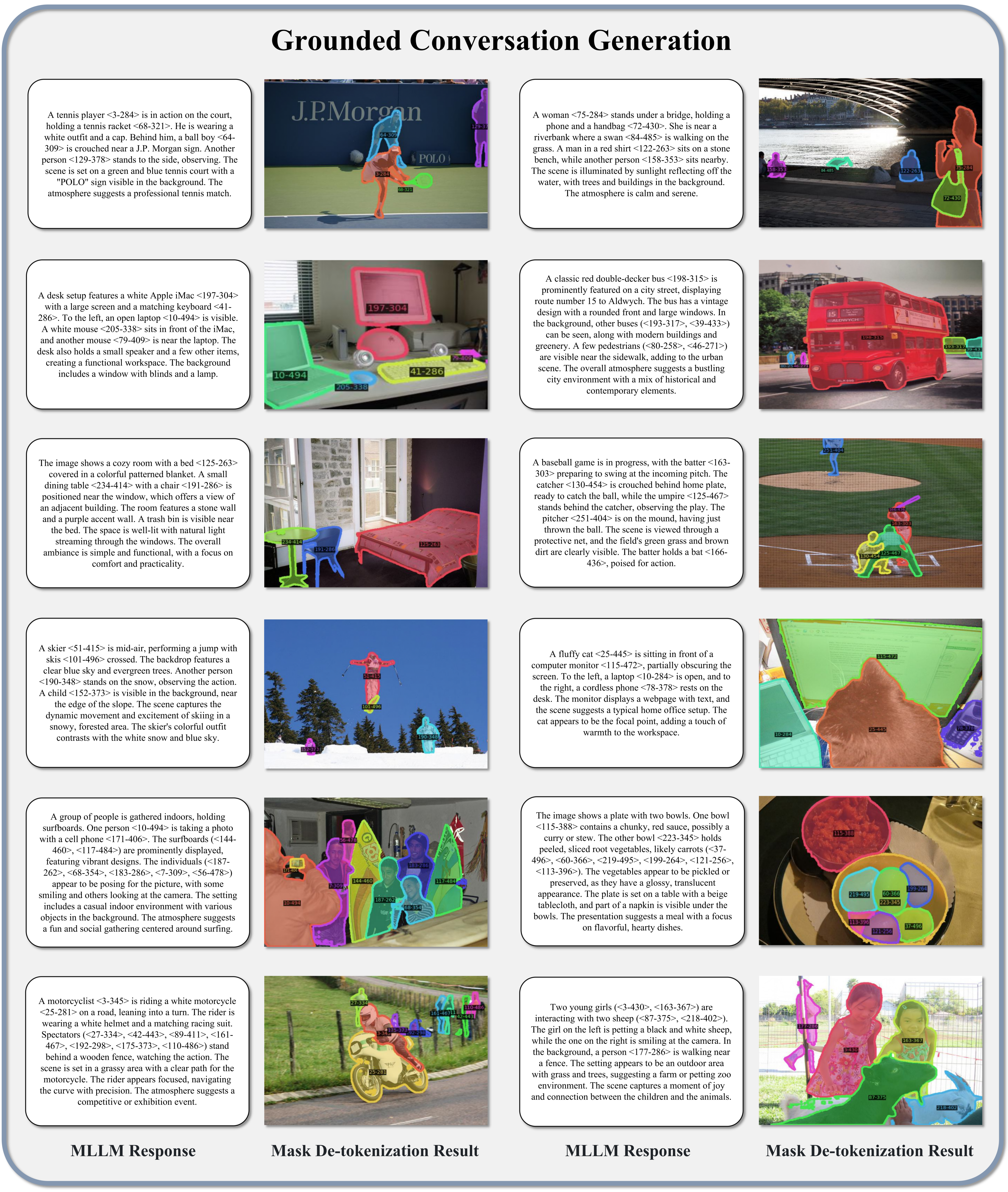

GCG examples. The model simultaneously describes the scene and produces region masks for phrases mentioned in the caption. For each highlighted phrase, SAMTok decodes the predicted mask tokens into segmentation masks. SAMTok’s compact representation (two tokens per mask) enables efficient, aligned text–mask generation with consistent grounding across multiple phrases within long captions.

Citation

@article{samtok,
  title={SAMTok: Representing Any Mask with Two Words},
  author={Zhou, Yikang and Zhang, Tao and Gong, Dengxian and Wu, Yuanzheng and Tian, Ye and Wang, Haochen and Yuan, Haobo and Wang, Jiacong and Qi, Lu and Wang, Anran and Wang, Zhuochen and Wang, Yujing and Chen, Cheng and Ji, Shunping and Li, Xiangtai},
  journal={arXiv preprint arXiv:2601.16093},
  year={2026}
}
